Perfect design for profile and shape of disk is low head loss. Operating actuator: - For hand actuation the valves are equipped with a worm gearbox or nut type gearbox which is fully maintenance - free and water tight (enclosure IP67)
DN 100-3000 mm Pressure: PN 6-40 bar Face to face: DIN EN 558-1 series 14/ISO 5752-14 (DIN3202-F4) Flanges: DIN EN 1092-2 (DIN2501)
AB-BVF-0311E which is rolled into a solid disc seat in a safe manner. Adjustable and removable clamping ring is provided for for easy readjustment or replacement of sealing ring, (for large sizes, without dismantling the valve) and ensures zero leakage in both flow directions.

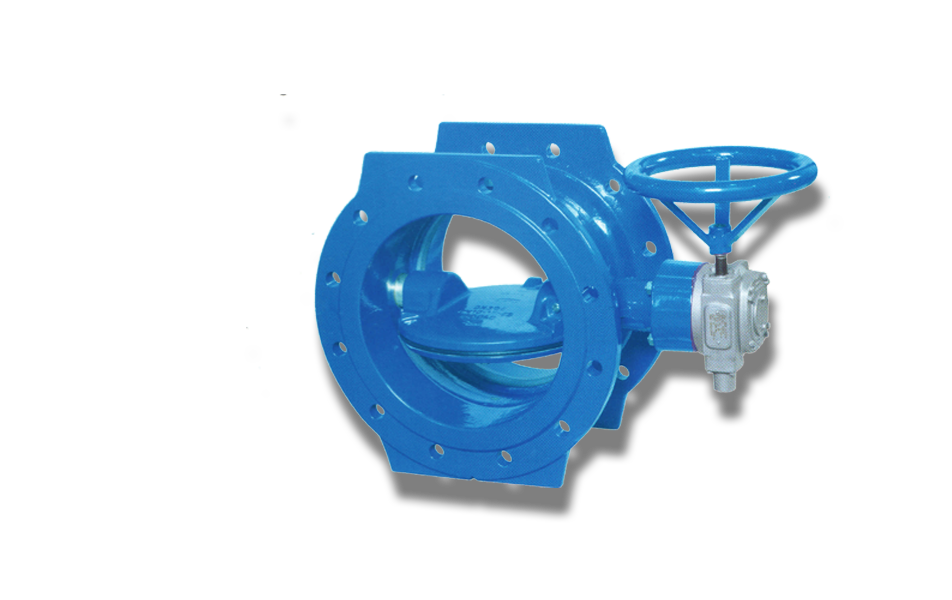

Butterfly valve is rolled into a solid disc seat in a safe manner. Adjustable and removable clamping ring is provided for for easy readjustment or replacement of sealing ring, (for large sizes, without dismantling the valve) and ensures zero leakage in both flow directions.

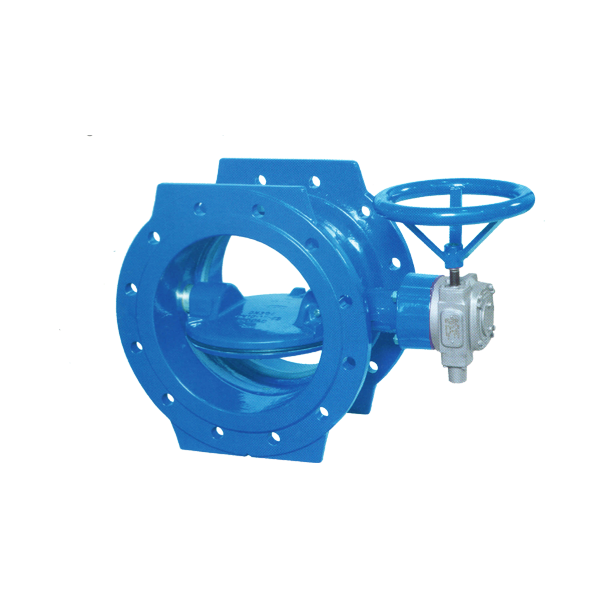

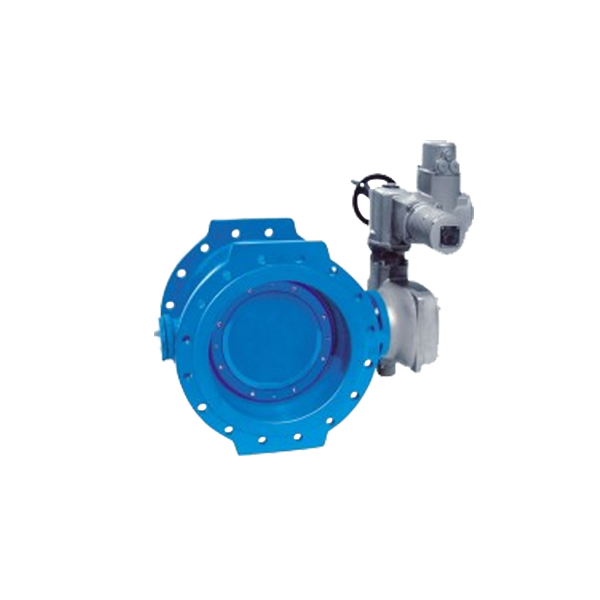

For hand actuation the valves are equipped with a worm gearbox or nut type gearbox which is fully maintenance - free and water tight (enclosure IP67). - Electrical actuators for the valves. (More technical information available on request)
Butterfly valves are used for closing & opening flows in pipe lines. This valve can be used in water supplies, dams, water treatment, pumping stations, pipe lines, industries, power plants, and irrigation.Fluid temperature up to 70°C for NBR and up to 120°C for EPDM sealing profile. Corrosion protection: Body and disc are fully coated with blue electrostatic powder coating with minimum 250 micron thickness.
